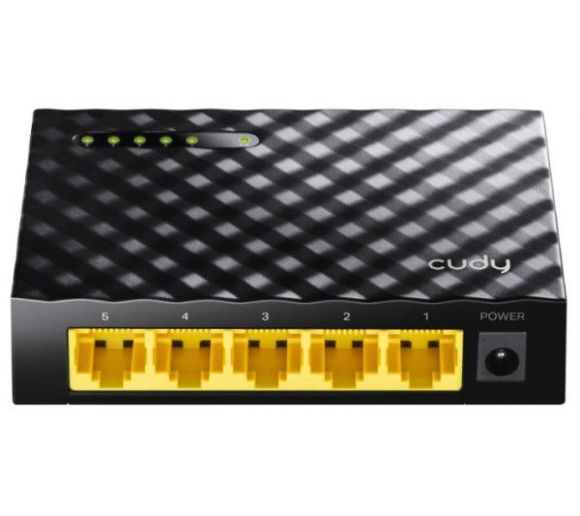

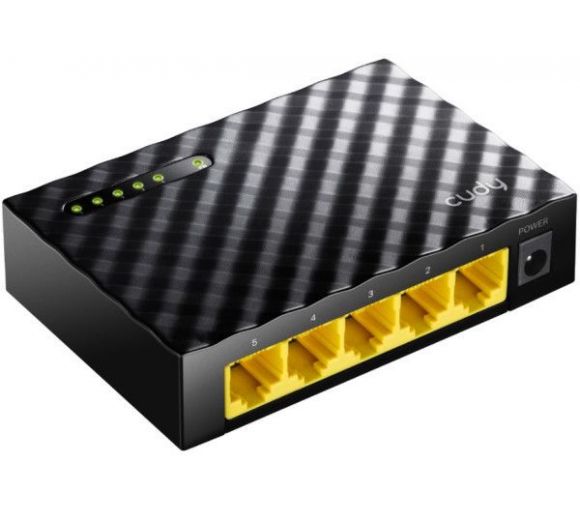

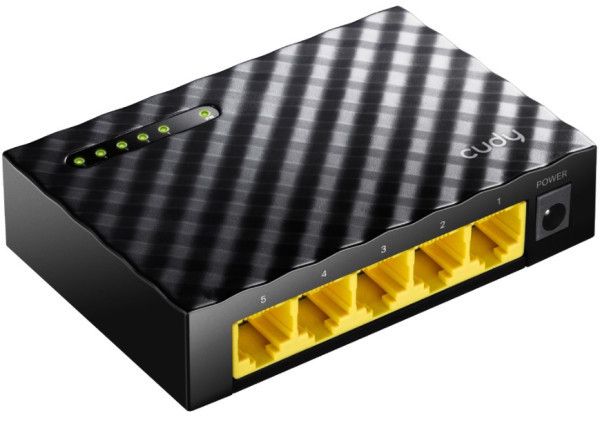

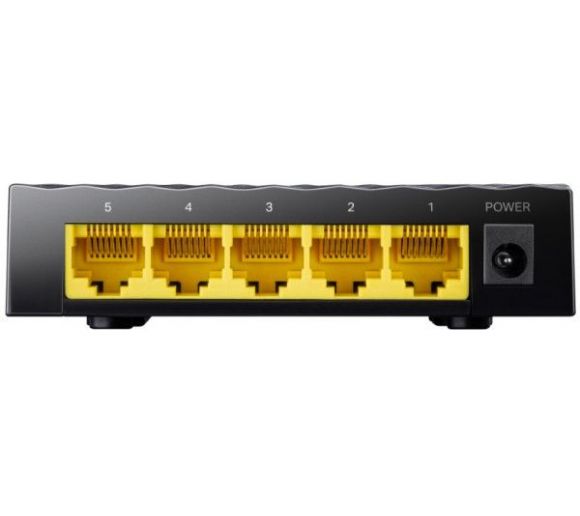

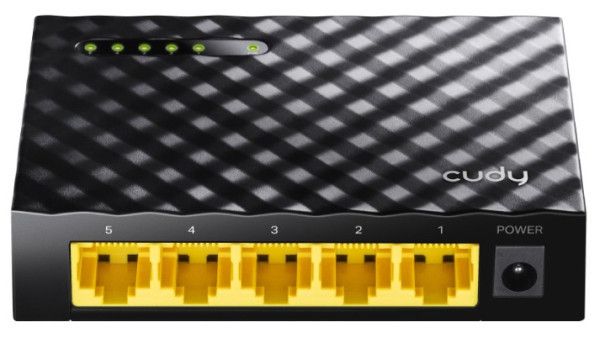

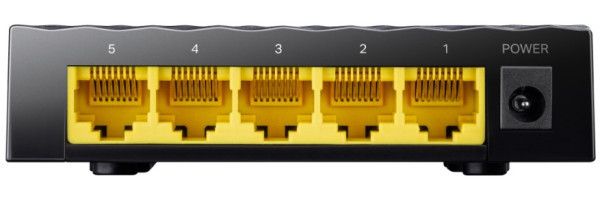

5-Port Gigabit Desktop Switch
5 x 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
IEEE 802.3, IEEE 802.3u, IEEE802.3x, IEEE 802.3ab standard
Supports MAC address auto-learning and auto-aging
Non-blocking switching architecture enables
full wire-speed packets forwarding and filtering
Cudy green technology saves the power up to 85%
Plug & Play, Desktop design

Specifications
Model GS105D
Interfaces 5x 10/100Base-TX Port
Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Protocol CSMA/CD
Data Rate 10/100/1000Mbps
Transmission Method Store-and-Forward
Switching Features MAC address auto-learning and auto-aging Half and Full Duplex 1Gbps backplane bandwidth
LED Indicators LAN~LAN5, Power
MAC Address Table 2K entries per device
Power Supply DC 5V 0.5A
Dimensions W*D*H 100mm x 74mm x 27mm
Weight 135g
Operating Temperatur 0°C~40°C (32°F~104°F)
Storage Temperature -40°C~70°C (-40°F~158°F)
Relative Humidity 10%~90%, non-condensing
Storage Humidity 5%~95%, non-condensing

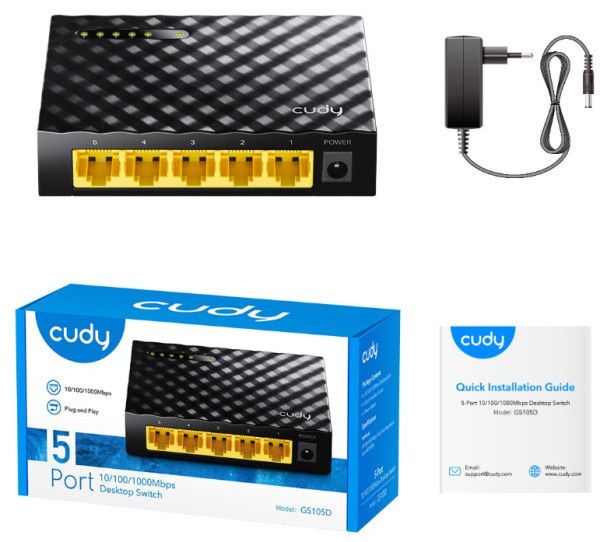

Package Contents 1 x Power Adapter;1 x Switch;1 x User Manual
